Datavideo SHOWCAST 100 4K Streaming Studio

Số lượng:

SHOWCAST 100 DATAVIDEO 4K SHOWCAST Streaming Studio

Innovative, Compact, Easy to Use and All-in-One

The SHOWCAST 100 is a brand new 4K 4-Channel All-in-one Production Studio that features 7 major functions. It can switch video, overlay text and graphics, control cameras, live stream, record, and mix audio all from a single unit. Similar to a tablet, the 14-inch touch panel allows easy and intuitive access to switcher functions.

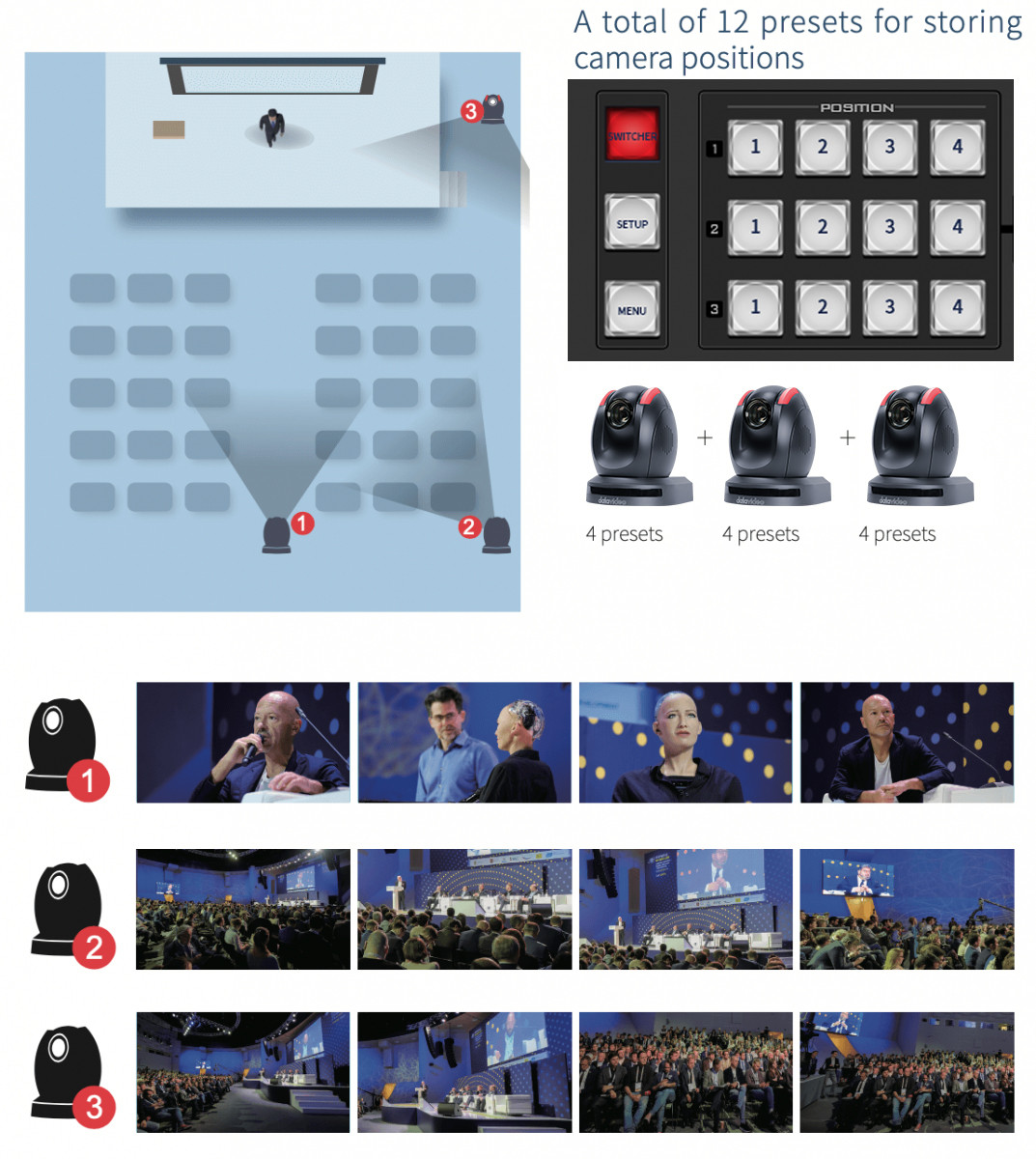

Powerful camera presets are equivalent to having 12 PTZ cameras

Model Number

SHOWCAST 100

Video Standard

4K & HD

Video Format

Input:
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
VGA, XGA (1024 x 768), SXGA (1280 x 1024),
UXGA (1600 x1200), WUXGA (1920 x 1200)

Output:
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50

Video Processing

4K60
YUV4:4:4 8bit, YUV 4:2:2 8/10bit, YUV 4:2:0 8bit, RGB 4:4:4 8bit
4K30
YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, YUV 4:2:0 8bit,
RGB 4:4:4 8/10/12bit
HD
YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, RGB 4:4:4 8/10/12bit

Video Input

4 x HDMI 2.0

Computer Graphic Interface

4 via HDMI

Video Output

3 x HDMI 2.0 for PGM
1 x HDMI for CG Preview

Built-in Multi-view Monitoring Out

On 14" Touch Panel

Analogue Audio Input

2 x 3 Pin XLR / 1/4” (6.3mm) Combo Socket
1 x Stereo RCA set (L/R)
Audio Input Switch: Stereo / Mono

Analogue Audio Output

1 x Stereo RCA set (L/R)
1 x Stereo headphone (Mini Jack with volume control)

Digital Embedded Audio Support

Input 2 channels, Output 2 channels

Audio Delay Calibration

Up to 200ms

Title Creator

Web GUI

USK

Lumakey

Picture in Picture

Effects

Seamless Cut, WIPE, Mix

Sync / Reference In/Out

Built-in Genlock (internal)

Tally Output

D-Sub -15 Male connector

PC Remote Control

Web browser UI for configuration and control
Socket commands

Camera Control

DVIP/ RS-422/ RS-232

Built-in Audio Mixer

Storage

1 x SD Card Slot
Supports SD, SDHC and SDXC card (UHS-I) (Class 10 above)

Recording File System

FAT, NTFS, exFAT

Recording File Format

MP4

Video Encode

H.264 / AVC, Main/ High Profile
Record Only: Up to 16Mbps (1080p 50/60)
Stream Only: Up to 10Mbps (1080p 50/60)
Rec and Stream: Up to 10Mbps (1080p 25/30)
Rec and Stream: Up to 36Mbps (1080p50/60), Dual Stream
