Bàn trộn Audio ON-AIR D&R Airmate 12 USB 12 kênh
Bàn trộn Audio ON-AIR D&R Airmate 12 USB 12 kênh
Airmate-USB 12 ch. triple input radio On-Air / Production console with 2x USB and 1x Telco, 1x VoIP
With an internal two Telephone Hybrid and USB connection to your PC for seamless web streaming, the Airmate-12 ensures professional-grade performance every time.
Featuring the extra options like VoIP, RIAA and an AES output, the Airmate-12 offers unparalleled versatility.
The Airmate-12 boasts eight input channels, each equipped with high-quality balanced microphone inputs on XLR, along with two stereo line-level inputs on Cinch (RCA) connectors.
What's more, each Mic input includes an insert for signal processors, while every line-level input can easily be transformed into a phono (record player) channel with the optional stereo R.I.A.A. equalized phono pre-amp.
And now, with the ability to connect our Studio Remote unit to the Airmate-12, you can take your radio production to new heights of excellence.

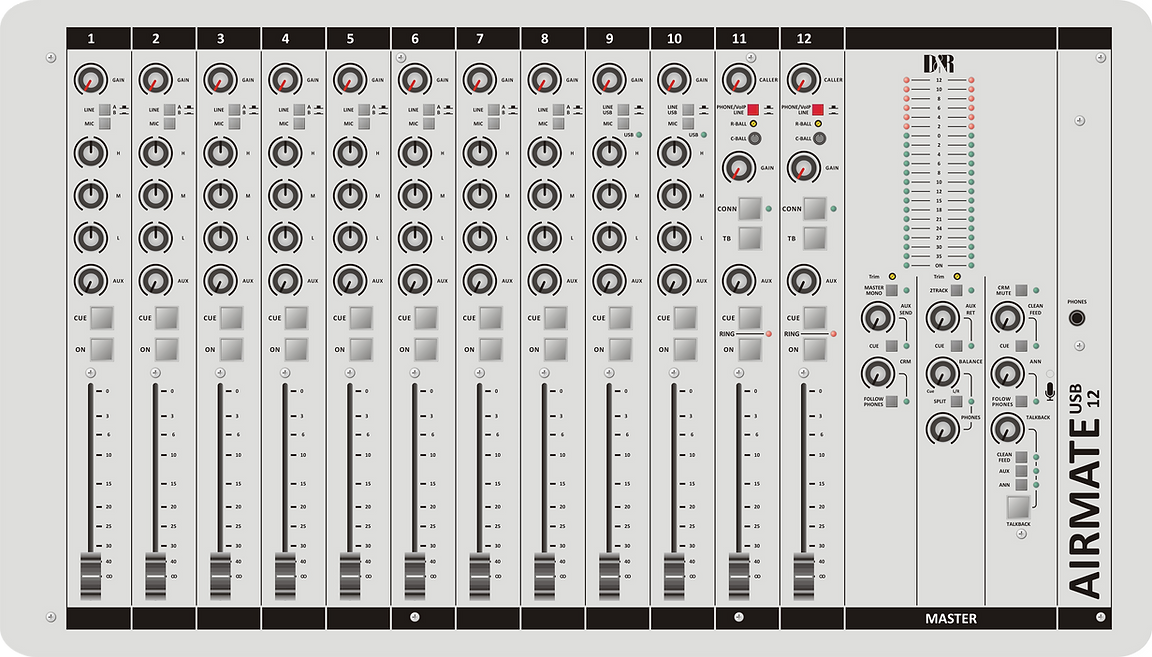

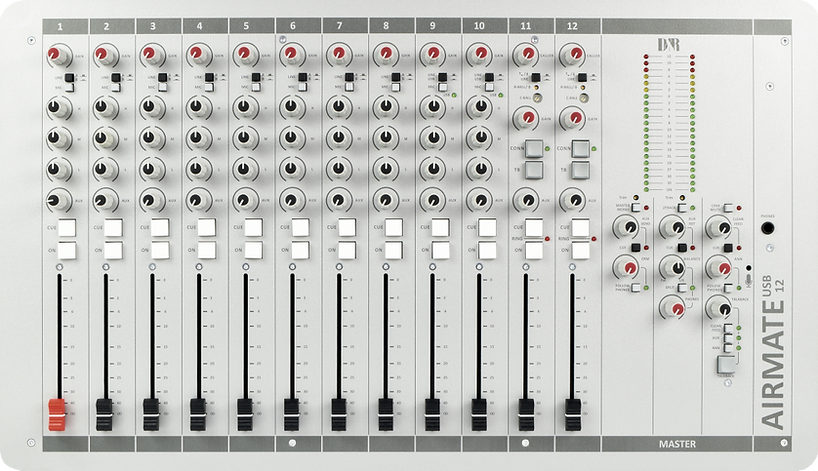

front panel
Inputs:
Microphone Inputs: 10 balanced mic inputs with +48V phantom power and insert.
Line Inputs: 12 stereo line inputs.
USB Connections: 2
Telephone Hybrids: 2
Channel features:
Channels 5 and 6: Equipped with Mic/Line and USB interface for seamless audio transfer to and from your PC.
Channels 7 and 8: RJ-11 connectors, in addition to stereo line inputs, allowing interfacing with a POT and a Telephone appliance for direct dialing.
Telephone hybrids:
High-quality built-in Hybrids ensure clear communication with listeners.
Direct Connection and Talkback buttons on Hybrid channels facilitate easy conversation.
Telco Send: Easily adjustable level to the caller.
Telco Gain: Easily adjustable level from the caller.
Additional features:
VoIP: Available on channels 7 and 8 for enhanced connectivity options.
Fader Start: Initiated from the ON switch or FADER, activating ON-AIR lights simultaneously.
Equalizer: 3-band equalizer available on channels 1-10.
Stereo Aux Send: Configurable as pre or post fader.
Mic Inputs: Equipped with low-cut jumpers.
Clean Feed Send: Available for external analog and digital Hybrids
