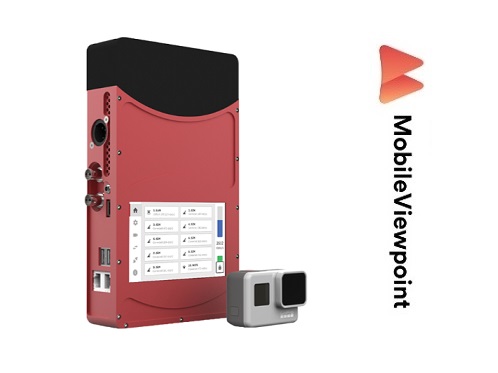

Mobile Viewpoint 4G LTE H.265/H.264 Bonding- WMT Agile AirLink - Live Video Transmission
Specifications
Interfaces
2 x RJ-45
2 x SD and HD SDI
2 x SD and HD HDMI
6.3 mm Jack IFB/Audio return
2 x USB
Touch screen
Optional SSD 2.5" sleeve
Inputs
SD; full D1
HD; 720p50, 720p60 and 720p59,94
HD; 1080i50, 1080i60 and 1080i59,94
Supported Encoding
H 264 high profile MVP codec
H.265 main profile
Connections
8 Modems, LTE(4G), fallback 3G
WiFI
Ethernet (optional 2)
Recording
120 GByte internal, up to 1T Byte using optional sleeve
SD: High quality CBR (Constant Bit Rate) in SD while broadcasting adaptive live stream
HD: High quality CBR (Constant Bit Rate) in H.264 or H.265 up to 30 Mbit
INTERNET CONNECTIVITY THROUGH DATABONDING
WiFi hotspot
Access via ethernet interface
IP Management
10/100/1000 base-T (combined with second Ethernet port)
Hardware
Dedicated appliance 12-24 volt
Weighs approximately 1,1 kilograms
13,8 cm x 23,4 cm x 4 cm (wxhxd)
Operations settings
Live: Adaptive encoding and bitrate change with three options or with a slider (optional), with configurable delay between 1*-60 seconds (* On software version 17.4).
Store and Forward: send over contents of an USB stick to a FTP server.
Recording: CBR encoding at 30 Mbit on internal or external SSD disk.
Satellite and Satellite + 3G: Specific modes to optimize transmission over BGAN and KA satellite. With Satellite +3G we can keep the delay at 1.8 seconds using 3G/4G modems for the return channel and IFB.
Disabled/Data bonding: In this mode the unit is a true data bonding unit for high speed uploads and Internet access. Also in the other modes data connectivity is available but live video gets prioritized.
PostPro license (optional): In this mode the system records next to a high res CBR a low res proxy file which can used for remote editing and only partial retrieve
Includes
Integrated Antenna Array
PSU 90-240 Volt AC to 12 Volt DC
Aerials (optional)
Dome Antenna; omnidirectional antenna array 3 dBi
Additional Accesories
Custom made backpack
WMT Agile AirLink
the thinnest encoder with TripleC connectivity; 2 camera inputs and data bonding
KEY FEATURES
- 8 build in modems
- H265 encoding
- Triple C connectivity; 2 video channels and data routing
- Ultrathin and compact
- Ruggedized casing
The WMT Agile AirLink is with its 40 mm the thinnest and most advanced unit available in the market. The unit provides TripleC connectivity, 2 individual video channels and data routing. The capabilities of the unit A class providing up to 50 Mbit H.265 encoding, 150 Mbit databonding, 2 HD video channels, Video return, 4 audio per video channel and last but not least recording up to 1 TByte. Next to all those extreme top features the unit also provides adoptive store and forward SFT technology insuring the delivery of any recorded material within the defined time frame. The WMT AirLink has 8 build in modems, Wifi and double lan access. The build in WiFi 2.4/5Ghz hotspot provides exelent data access for any device in the environment. With it just over 1Kg weight the AirLink is the racecar of the bonding units providing the most reliable an feature reach live transmission device to any broadcaster or journalist.
WMT Technology
The use of multiple networks guarantees the highest bandwidth, the best possible network coverage and offers a redundant solution. The video is encoded with H.265 hardware codec which will automatically determine the available bandwidth and continuously transmit on the highest available bandwidth. This ensures transmission of the best possible video quality with the shortest possible fixed delay time.
