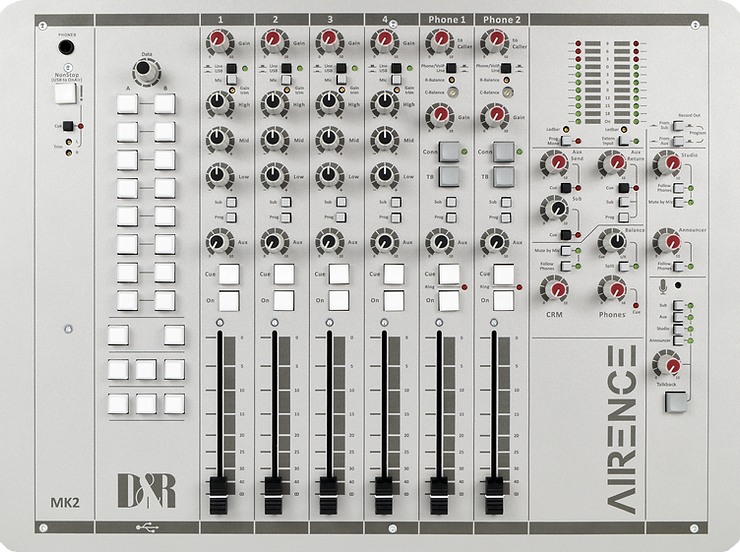

INPUTS
Mic inputs:
bal, 2 kOhm, XLR. ,48 volt Phantom.
Noise: - 128 dBr (A-weighted). (That 1501)Sensitivity: - 70dB min, OdB Max.
Insert: Jack unbalanced send 600 Ohm -10dBV.
Aux Return unbalanced 10kOhm -10dBv.
Line inputs: unbal.., 10kOhm, Cinch.
Gain: range of 40dB.
Phono inputs: unbal. 47kOhm, 5 mV. (optional)
USB: 4x Stereo in and 4x stereo out.
Extern in: - 10 dBV at 10kOhm.
Aux returns: - 10 dBv at 10kOhm stereo
USB
Fully compliant with USB 2.0 playback and record mode. 4x Stereo in and Main stereo or SUB signals out.
HID Functions: Volume|Mute|Control
USB CONTROL SECTION
24 free assignable illuminated switches plus encoder based on the HID protocol.
TELEPHONE HYBRIDS
RJ-11 connectors for phone line/dialler
Mix Minus rejection @1kHz -40dB.
OUTPUTS
Left/Right: + 6dBu bal. XLR.
Monitor/Aux : + 6dBu unbal. on Cinch.
Studio: + 6dBu, Jacks. Tape outp: -10dBv.
Headphone: 32-600 Ohm, Jack.
Announcer: 32-600 Ohm, Jack.
USB out: Main program stereo signal or SUB
EQUALIZER
High: + / -12 dB at 12kHz shelving.
Mid: + / -12dB at 1 kHz bell curve.
Low: + / -12dB at 60 Hz shelving.
POWER
A High efficient (level 5) switched digital power supply will be supplied with every individual unit.
Input range is 100-240volt|47-63Hz
Power consumption is 60 watt.
Also an extra redundancy back supply can be connected to the main unit.
OVERALL
Frequency response: 10 - 60.000Hz.
Distortion: < 0.01% max at 1 kHz.
Start switch: isolated reed relay. (24volt/50mA)
Ledbars: 11 segment and on high res on screen
SOFTWARE
A software protocol is available for programming of the USB HID protocol to match your software.
DIMENSIONS
Main unit
Width: 482mm, Front Panel Thickness: 2mm
Corner Radius: 20 mm
Height: 355mm
Depth: 101.50mm.
Weight: 9kg.
Drop through hole: 450mm x 344mm
Extension unit
Width: 302mm, Front Panel Thickness: 2mm
Corner Radius: 20 mm
Height: 355mm
Depth: 101.50mm.
Weight: 7kg.
Drop through hole: 270mm x 344mm
