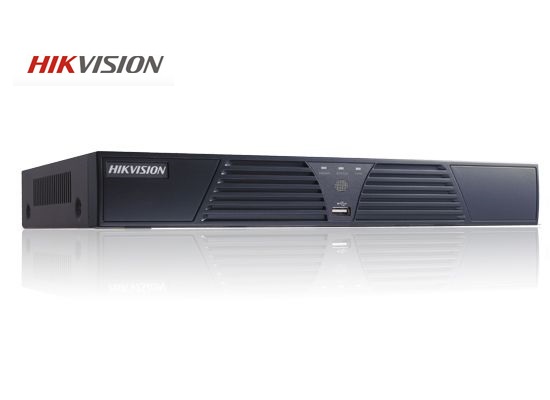

Đầu ghi DVR cho Camera IP HiKVision - DS-7204/7208/7216HVI-ST/SN

Đối tác của chúng tôi

Trạng thái: Còn hàng

Liên hệ

Video/Audio Input

Video Compression:	H.264
Analog Video Input:	16-ch
PAL/NTSC Adaptive:	Support
Video Input Interface:	BNC (1.0 Vp-p, 75Ω)
Audio Compression:	G.711
Audio Input:	1-ch
Audio Input Interface:	RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:	1-ch RCA(2.0Vp-p, 1kΩ)

Video/Audio Output

VGA Output:	1-ch, resolution: 1280×1024/60Hz, 1024×768/60Hz
CVBS Output:	1-ch, BNC connector (1.0 Vp-p, 75 Ω); Resolution: PAL: 704 × 576, NTSC: 704 × 480
Recording resolution:	4CIF/2CIF/CIF
Frame Rate:	Main stream: 4CIF / 2CIF @ 6 fps Sub stream: CIF / QCIF
Video Bit Rate:	32Kbps~2048Kbps, or user-defined (Max.3Mbps)
Stream Type:	Video/Video&Audio
Audio Output:	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:	64kbps
Dual Stream:	Support
Synchronous Playback:	16-ch

Hard Disk Driver

Interface Type:	1 SATA Interface
Capacity:	Up to 2TB capacity for each disk

External Interface

Network Interface:	1 RJ45 10M/100M adaptive Ethernet Interface
USB Interface:	2 USB 2.0 Interfaces
Serial Interface:	1 RS-485 interface

General

Power Supply:	12 VDC
Consumption:	≤15W (without hard disk or DVD-R/W)
Working Temperature:	-10 °C ~ +55 °C
Working Humidity:	10% ~ 90%
Chassis:	Standlone 1U chassis
Dimensions:	315 (W)× 230(D) × 45 (H)mm
Weight:	≤ 2kg (without hard disk or DVD-R/W)

Số lượng:

Key features

• H.264 video compression
• Up to 4CIF resolution recording
• VGA output at 1280 × 1024 resolution
• Dual-stream
• 4/8/16-ch synchronous playback
• SADP(IP Finder), NTP, DHCP, SMTP protocols
