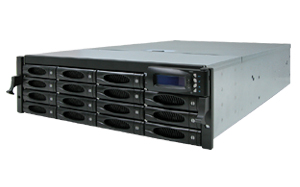

PROWARE RAID Sub System - EPICa Series EP-3163-S6S6 - 3U 6Gb SAS – 6Gb SAS RAID Subsystem
| Model | EP-3163-S6S6 |
|---|---|
| RAID controller | 6Gb SAS – 6Gb SAS |
| Host interface | Two 6Gb/s SAS (SFF-8088) |
| Disk interface | 6Gb/s SAS, 6Gb/s SATA |
| SAS expansion | One 6Gb/s SAS (SFF-8088) |
| Capacity | |
| Direct attached | 16 Disks |
| Expansion | Up to 128 Disks |
| Processor type | 800MHz RAID-On-Chip storage processor |
| Cache memory | 1GB ~ 4GB DDR2-800 ECC Registered SDRAM |
| Battery backup | Optional |
| Management port support | Yes |
| RAID Features | |
| RAID level | 0, 1,10(1E), 3, 5, 6, 30, 50, 60 and JBOD |
| Array group | Up to 128 |
| LUNs | Up to 128 |
| Hot spare | Yes |
| Drive roaming | Yes |
| Online rebuild | Yes |
| Variable stripe size | Yes |
| E-mail notification | Yes |
| Online capacity expansion, RAID level /stripe size migration | Yes |
| Online array roaming | Yes |
| Online consistency check | Yes |
| SMTP manager and SNMP agent | Yes |
| Redundant flash image | Yes |
| Instant availability and background initialization | Yes |
| S.M.A.R.T. support | Yes |
| MAID 2.0 | Yes |
| Bad block auto-remapping | Yes |
| Enclosure | |
| Platform | Rackmount |
| Form factor | 3U |
| # of hot swap trays | 16 |
| Tray lock | Yes |
| Disk status indicator | Access / Fail LED |
| Backplane | SAS2 / SATA3 Single BP |
| # of PS/Fan modules | 500W x 2 w/PFC |
| # of fans | 4 |
| Power requirements | AC 90V ~ 264V Full range 10A ~ 5A, 47Hz ~ 63Hz |
| Environmental | |
| Relative humidity | 10% ~ 85% Non-condensing |
| Operating temperature | 10°C ~ 40°C (50°F ~ 104°F) |
| Physical dimension | 590(L) x 482 (W) x 131(H) mm |
| Weight (Without disk) | 24 Kg |
※ Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 and JBOD
※ Supports online Array roaming
※ Online RAID level/stripe size migration
※ Online capacity expansion and RAID level migration simultaneously
※ Support global and dedicated hot spare
※ Online volume set expansion
※ Support multiple array enclosures per host connection
※ Greater than 2TB per volume set (64-bit LBA support)
※ Greater than 2TB per disk drive
※ Supports 4K bytes/sector for Windows up to 16TB per volume set
※ Disk scrubbing/ array verify scheduling for automatic repair of all configured RAID sets
※ Login record in the event log with IP address and service (http, telnet
and serial)
※ Support intelligent power management to save energy and extend
service life
※ Support NTP protocol to synchronize RAID controller clock over the on-
board LAN port
※ Max 128 LUNs (volume set) per controller
※ Transparent data protection for all popular operating systems
※ Instant availability and background initialization
※ Supports S.M.A.R.T, NCQ and OOB staggered Spin-up capable drives
※ Supports hot spare and automatic hot rebuild
※ Local audible event notification alarm
※ Redundant flash image for high availability
※ Real time clock support
